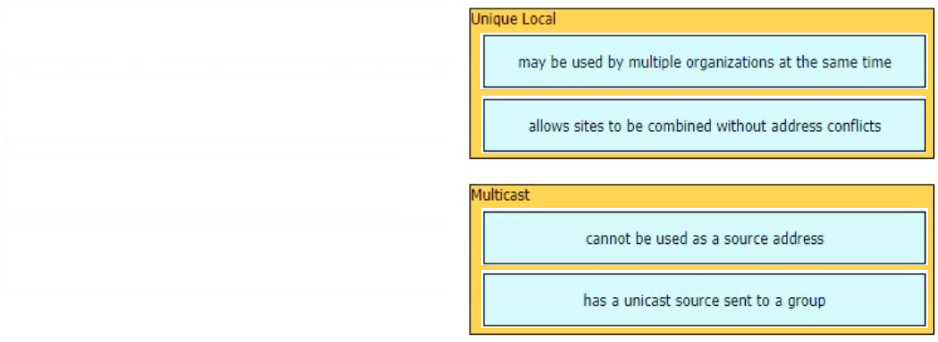

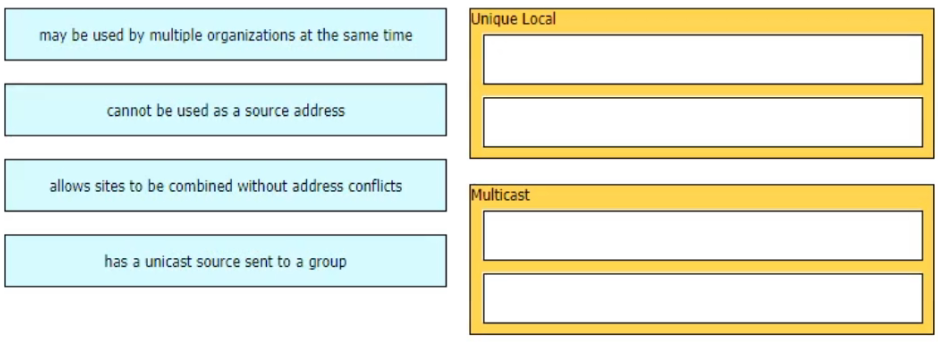

DRAG DROP -Drag and drop the characteristic from the left onto the IPv6 address type on the right.

What is the operating mode and role of a backup port on a shared LAN segment in Rapid PVST+?

A. learning mode and provides the shortest path toward the root bridge handling traffic away from the LAN

B. blocking mode and provides an alternate path toward the designated bridge

C. forwarding mode and provides the lowest-cost path to the root bridge for each VLAN

D. listening mode and provides an alternate path toward the root bridge

A network architect is deciding whether to implement Cisco autonomous access points or lightweight access points.
Which fact about firmware updates must the architect consider?

A. Unlike lightweight access points, which require redundant WLCs to support firmware upgrades, autonomous access points require only one WLC.

B. Unlike autonomous access points, lightweight access points require a WLC to implement remote firmware updates.

C. Unlike lightweight access points, autonomous access points can recover automatically from a corrupt firmware update.

D. Unlike autonomous access points, lightweight access points store a complete copy of the current firmware for backup.

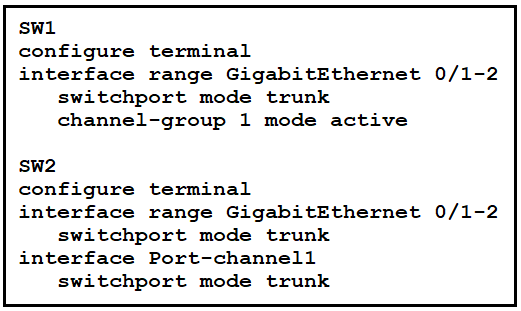

Refer to the exhibit.
Which configuration enables SW2 to establish an LACP EtherChannel?

A.

B.

C.

D.

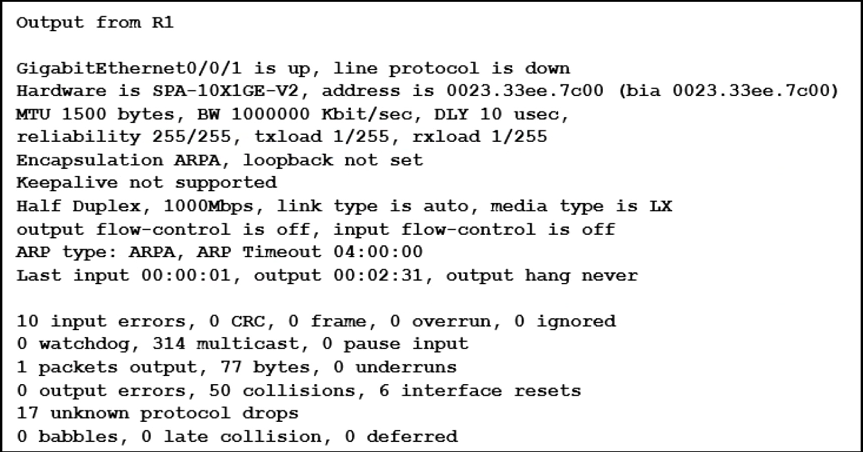

Refer to the exhibit. What is the issue with the interface GigabitEthernet0/0/1?

A. port security

B. cable disconnect

C. high throughput

D. duplex mismatch

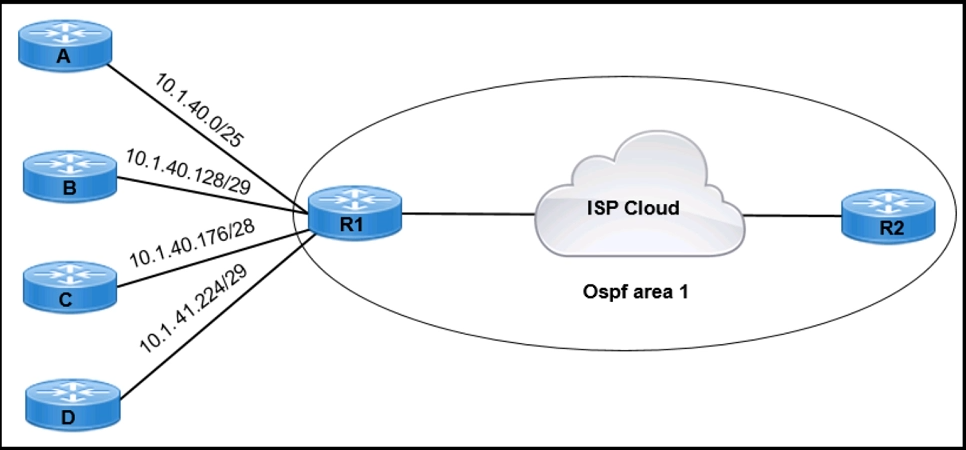

Refer to the exhibit. Router R1 receives static routing updates from routers A, B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1.
Which summary address must be advertised in OSPF?

A. 10.1.41.0/25

B. 10.1.40.0/24

C. 10.1.40.0/25

D. 10.1.40.0/23

Which type of IPv4 address must be assigned to a server to protect it from external access and allow only internal users access while restricting internet access?

A. private

B. public

C. global unicast

D. multicast

What differentiates the Cisco OfficeExtend AP mode from the Cisco FlexConnect AP mode?

A. FlexConnect allows a personal SSID to be configured on the AP, and personal SSIDs are not supported with OfficeExtend.

B. OfficeExtend does not support DTLS tunneling of traffic to the WLC, and FlexConnect tunnels traffic to the WLC with DTLS.

C. FlexConnect must be deployed behind a router that NATs the client traffic, and OfficeExtend uses public IP sources.

D. OfficeExtend mode requires indoor APs with internal antennas, and indoor and outdoor APs use FlexConnect mode.

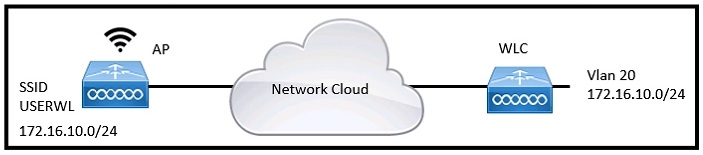

Refer to the exhibit. A network engineer is configuring a WLAN to connect with the 172.16.10.0/24 network on VLAN 20. The engineer wants to limit the number of devices that connect to the WLAN on the USERWL SSID to 125.
Which configuration must the engineer perform on the WLC?

A. In the Controller IPv6 configuration, set the Throttle value to 125.

B. In the WLAN configuration, set the Maximum Allowed Clients value to 125.

C. In the Management Software activation configuration, set the Clients value to 125.

D. In the Advanced configuration, set the DTIM value to 125.

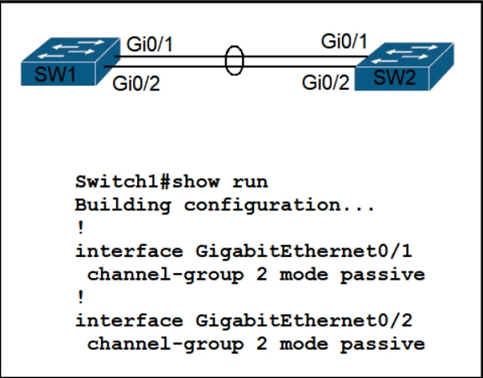

Refer to the exhibit. An LACP EtherChannel between two directly connected switches is in the configuration process.
Which command must be configured on switch SW2s Gi0/1-2 interfaces to establish the channel to SW1?

A. channel-group 1 mode on

B. channel-group 1 mode desirable

C. channel-group 1 mode active

D. channel-group 1 mode auto
