Question 1101
What is the role of the root port in a switched network?
A. It replaces the designated port when the designated port fails.
B. It replaces the designated port when the root port fails.
C. It is the best path to the root from a nonroot switch.
D. It is administratively disabled until a failover occurs.
Question 1102
What is the temporary state that switch ports always enter immediately after the boot process when Rapid PVST+ is used?
A. forwarding
B. listening
C. learning
D. discarding
Question 1103
What is used to identify spurious DHCP servers?
A. DHCPACK
B. DHCPREQUEST
C. DHCPOFFER
D. DHCPDISCOVER
Question 1104

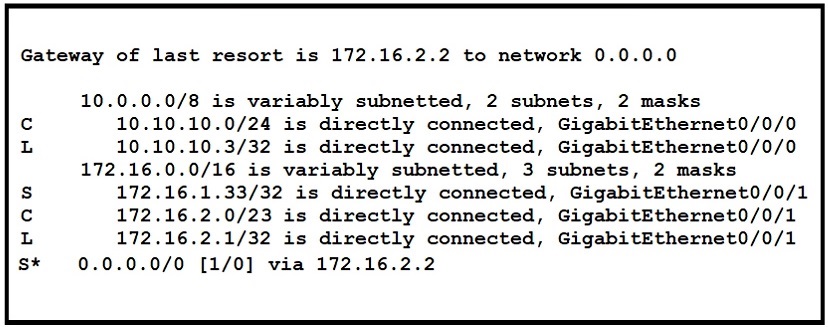

Refer to the exhibit. A packet sourced from 10.10.10.1 is destined for 172.16.3.254. What is the subnet mask of the destination route?
A. 0.0.0.0
B. 255.255.254.0
C. 255.255.255.0
D. 255.255.255.255
Question 1105

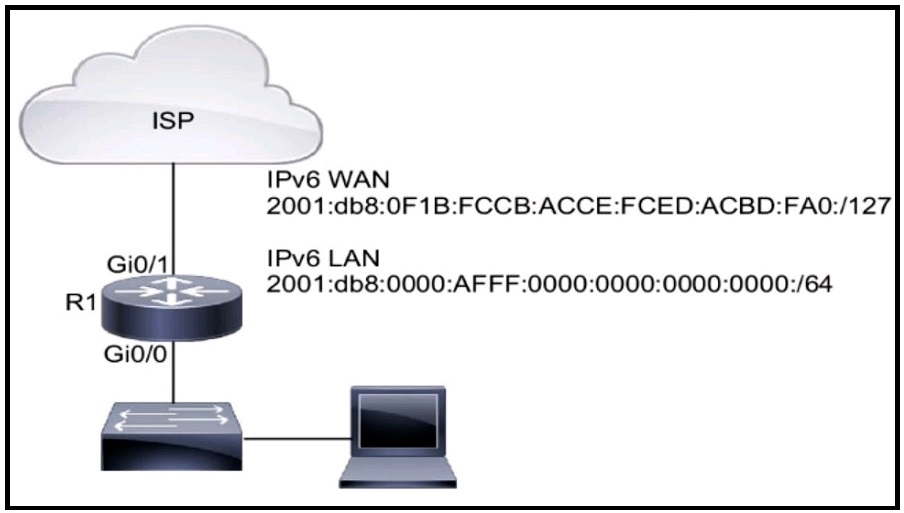

Refer to the exhibit. IPv6 must be implemented on R1 to the ISP. The uplink between R1 and the ISP must be configured with a manual assignment, and the LAN interface must be self-provisioned. Both connections must use the applicable IPv6 networks.
Which two configurations must be applied to R1? (Choose two.)
A. interface Gi0/0
ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA03:/127
B. interface Gi0/0
ipv6 address 2001:db8:0:AFFF::/64 eui-64
C. interface Gi0/1
ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA02:/127
D. interface Gi0/0
ipv6 address 2001:db8:1:AFFF::/64 eui-64
E. interface Gi0/1
ipv6 address 2001:db8:0F1B:FCCB:ACCE:FCED:ABCD:FA00:/127
Question 1106
Refer to the exhibit. What does the host do when using the IPv4 Preferred function?
A. It forces the DNS server to provide the same IPv4 address at each renewal.
B. It requests the same IPv4 address when it renews its lease with the DHCP server.
C. It prefers a pool of addresses when renewing the IPv4 host IP address.
D. It continues to use a statically assigned IPv4 address.
Question 1107

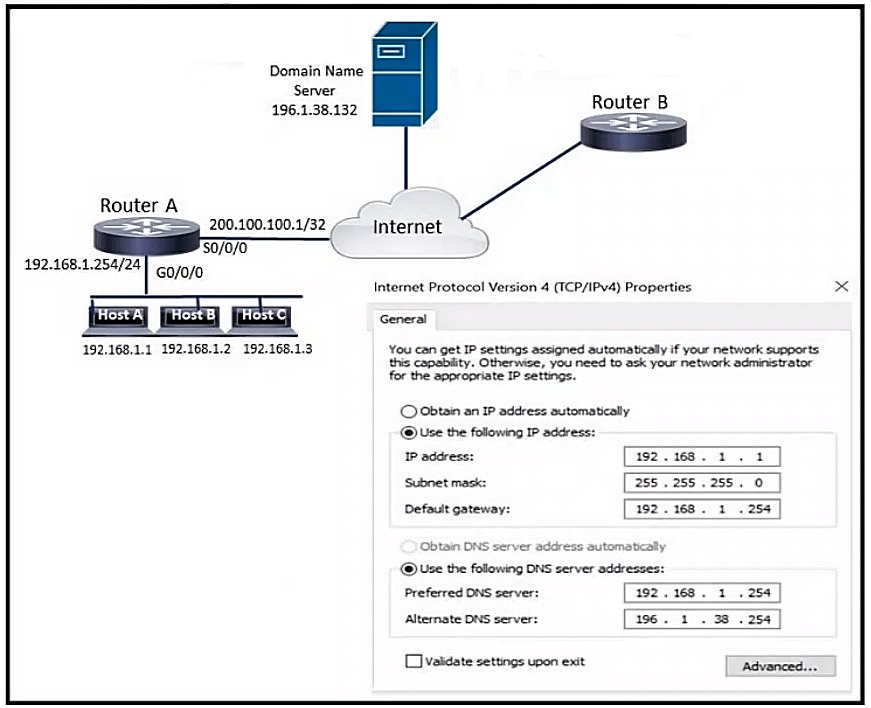

Refer to the exhibit. What is preventing host A from reaching the internet?
A. LAN and WAN network segments are different.
B. The domain name server is unreachable.
C. The default gateway should be the first usable IP address.
D. IP address assignment is incorrect.
Question 1108
What are two capabilities provided by VRRP within a LAN network? (Choose two.)
A. redundancy
B. granular QoS
C. load sharing
D. dynamic routing updates
E. bandwidth optimization
Question 1109
Which AP mode is used for capturing wireless traffic and forwarding that traffic to a PC that is running a packet analyzer?
A. bridge
B. monitor
C. rouge detector
D. sniffer
Question 1110

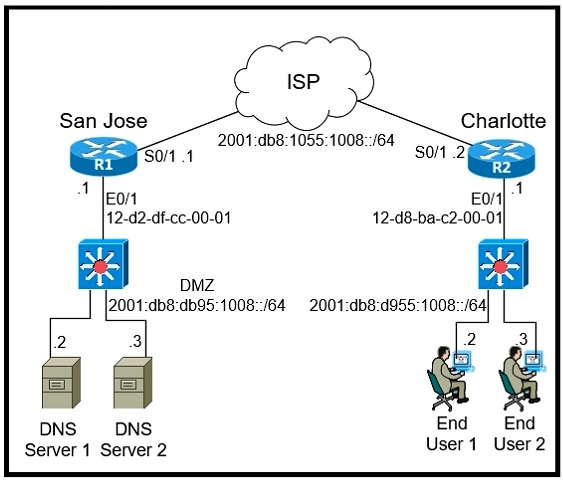

Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
A. 2001:db8:d955:1008:12D8:BAFE:FF01:1
B. 2001:db8:d955:1008:4598:785F:FE25:1
C. 2001:db8:d955:1008:1030:ABFF:FECC:1
D. 2001:db8:d955:1008:10D8:BAFF:FEC2:1
