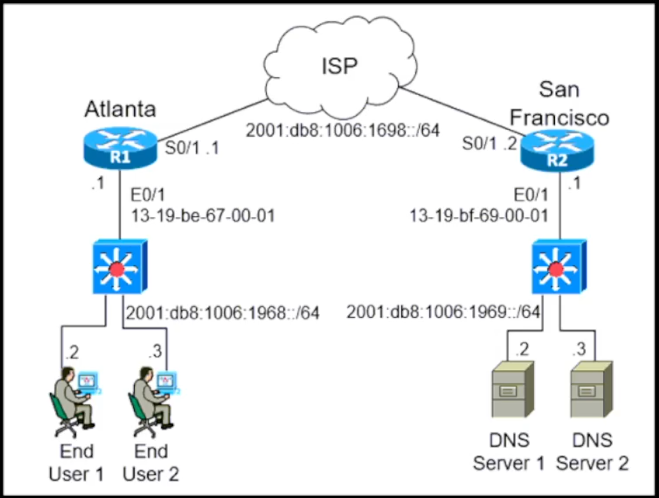

Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which Ipv6 address Is produced by the router?
A. 2001:db8:1006:1968:4564:877F:FE99:1
B. 2001:db8:1006:1968:1119:BEFF:FE67:1
C. 2001:db8:1006:1968:1130:ABFF:FECC:1
D. 2001:db8:1006:1968:12D8:BAFE:FF01:1
Question 1082

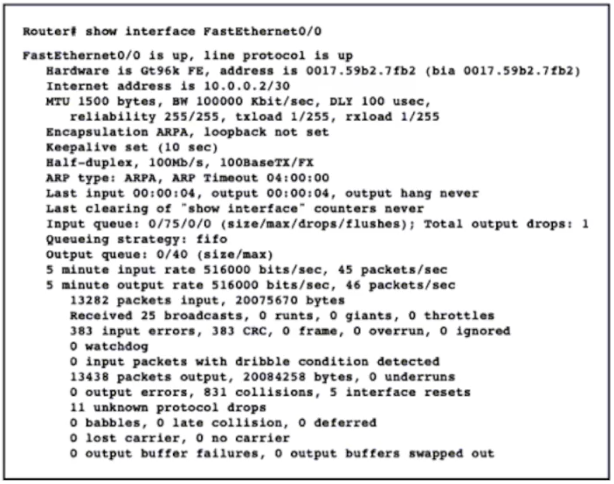

Refer to the exhibit. Users at a branch office are experiencing application performance issues, poor VoIP audio quality, and slow downloads. What is the cause of the issues?
A. QoS queuing
B. interface configuration
C. broadcast storm
D. overutilization
Question 1083

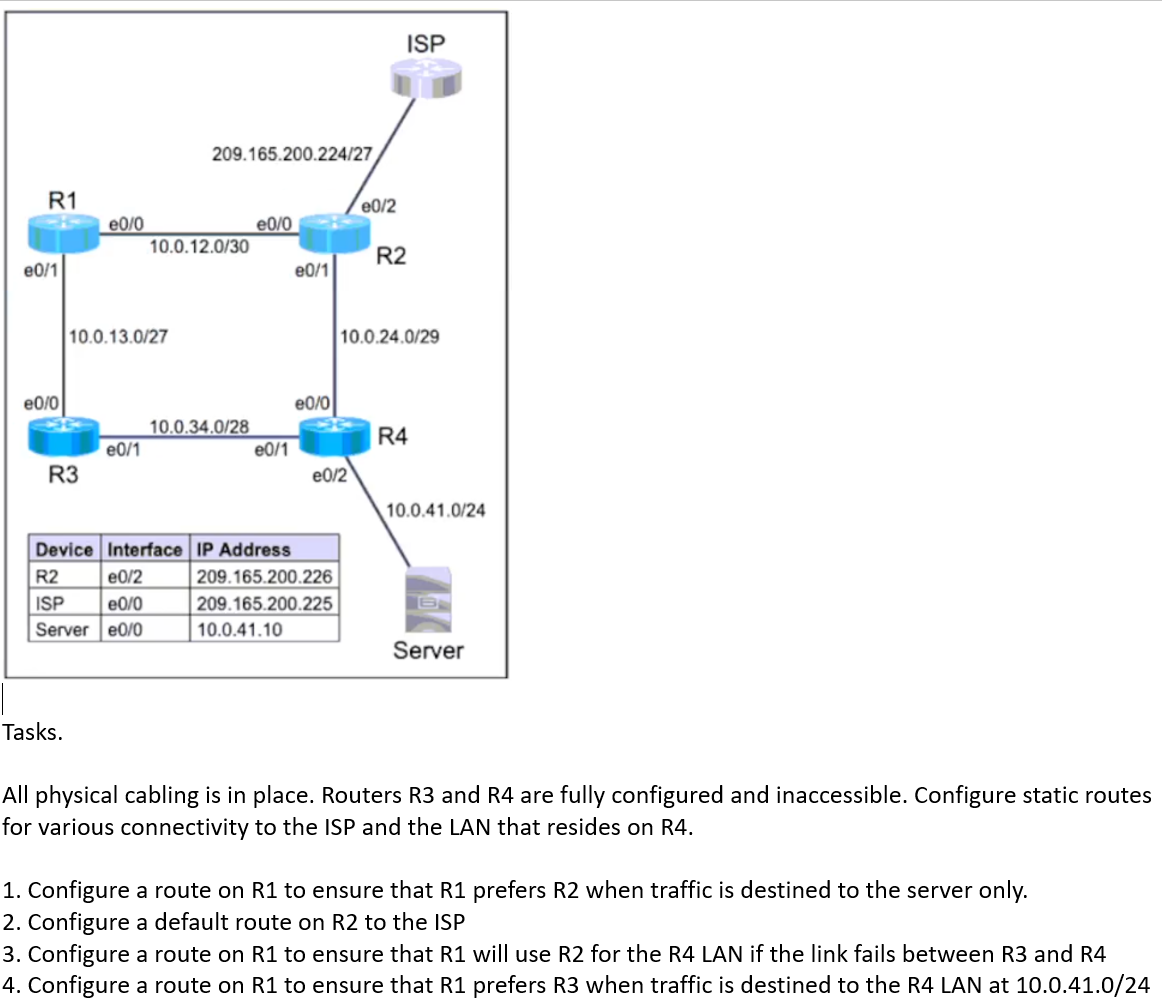

SIMULATION Guidelines This is a lab item in which tasks will be performed on virtual devices:
• Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window • All necessary preconfigurations have been applied • Do not change the enable password or hostname for any device • Save your configurations to NVRAM before moving to the next item • Click Next at the bottom of the screen to submit this lab and move to the next question • When Next is clicked the lab closes and cannot be reopened Topology
Question 1084
An engineer needs to configure an access point to forward all client traffic through a wireless controller. Which mode must be enabled to accomplish this task?
A. local
B. monitor
C. autonomous
D. rogue detector
Question 1085
SIMULATION Guidelines This is a lab item in which tasks will be performed on virtual devices
• Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window • All necessary preconfigurations have been applied • Do not change the enable password or hostname for any device • Save your configurations to NVRAM before moving to the next item • Click Next at the bottom of the screen to submit this lab and move to the next question • When Next is clicked the lab closes and cannot be reopened
Topology
Question 1086
Which interface is used to send traffic to the destination network?
A. G0/21
B. G0/4
C. G0/5
D. G0/16
Question 1087

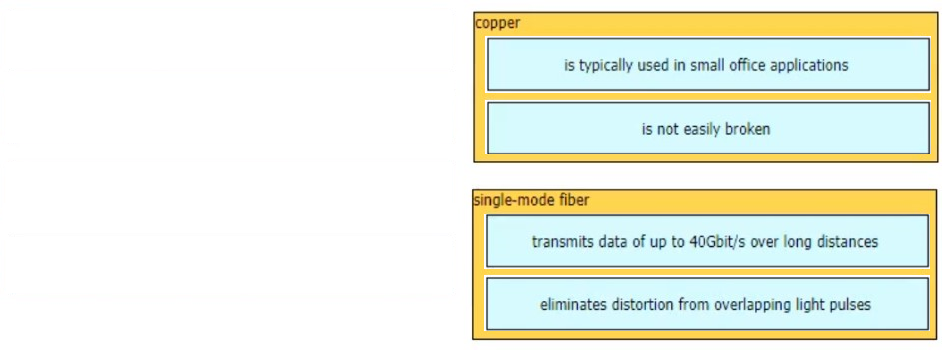

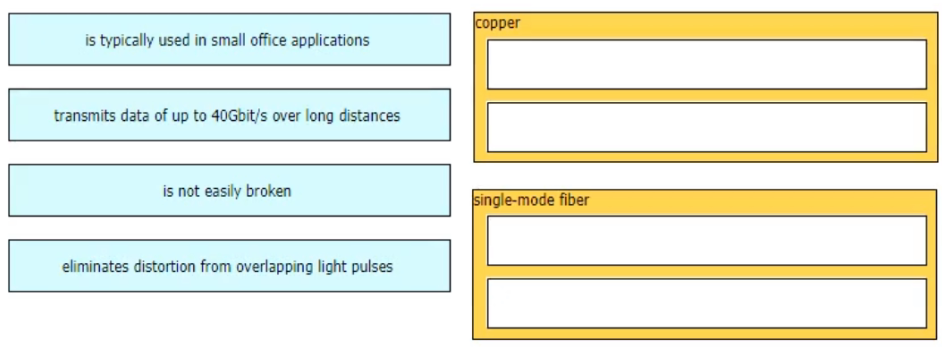

DRAG DROP -Drag and drop the characteristic from the left onto the cable type on the right.
Question 1088

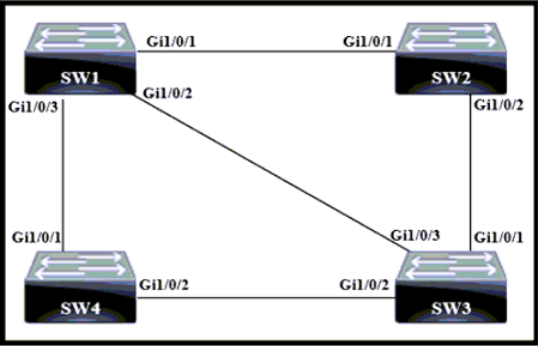

Refer to the exhibit. Which switch becomes the root bridge?
