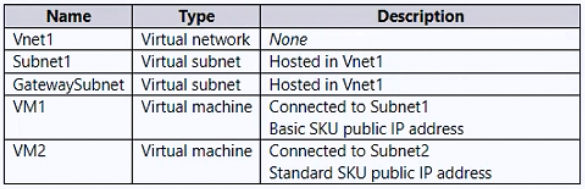

You have an Azure subscription that contains the resources shown in the following table. You plan to deploy an Azure Virtual Network NAT gateway named Gateway1. The solution must meet the following requirements: • VM1 will access the internet by using its public IP address. • VM2 will access the internet by using its public IP address. • Administrative effort must be minimized. You need to ensure that you can deploy Gateway1 to Vnet1. What is the minimum number of subnets required on Vnet1?
Question 62

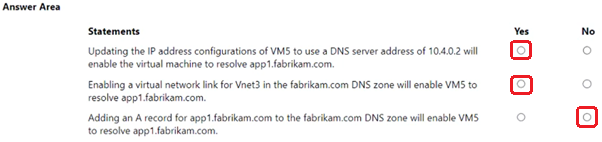

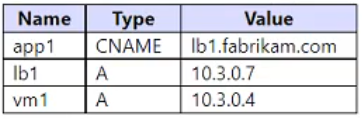

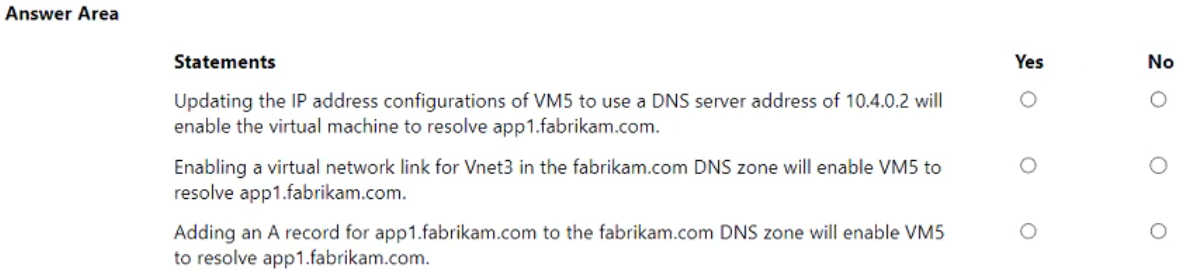

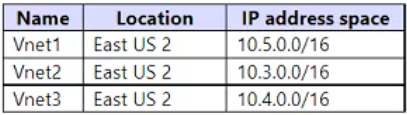

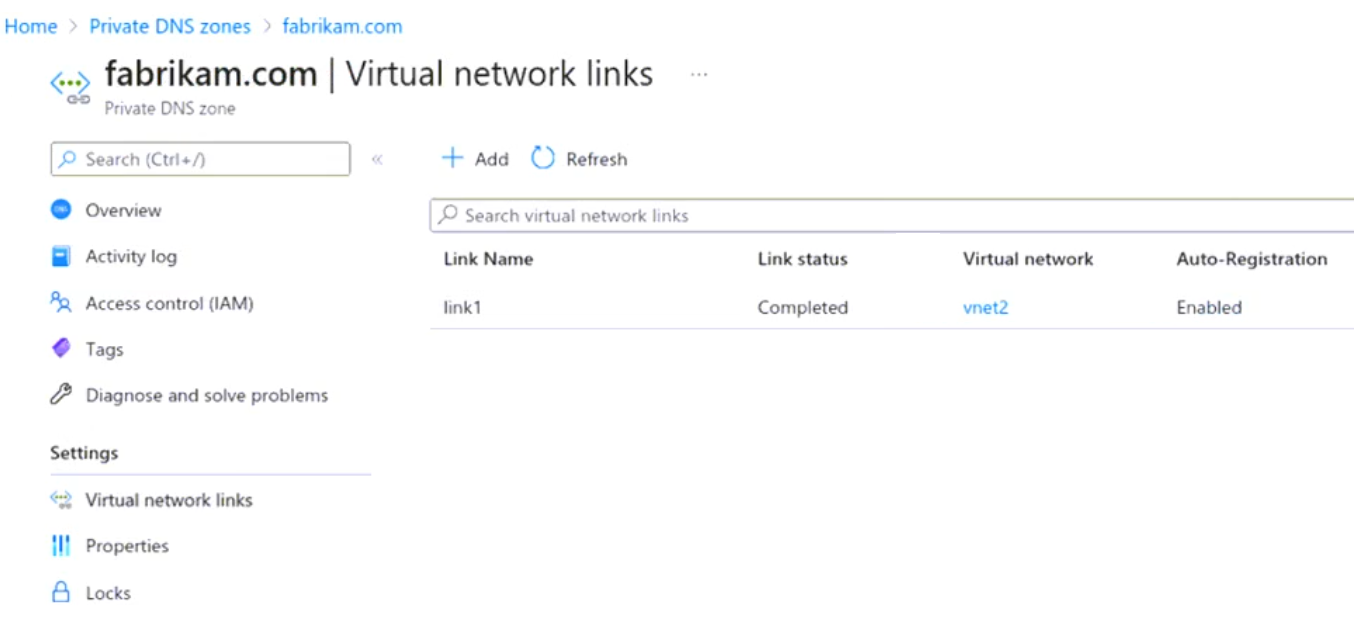

HOTSPOT - You have an Azure subscription that contains the virtual networks shown in the following table. You have a virtual machine named VM5 that has the following IP address configurations: • IP address:10.4.0.5 • Subnet mask:255.255.255.0 • Default gateway: 10.4.0.1 • DNS server: 168.63.129.16 You have an Azure Private DNS zone named fabrikam.com that contains the records shown in the following table. The virtual network links in the fabrikam.com DNS zone are configured as shown in the exhibit. (Click the Exhibit tab.) VM5 fails to resolve the IP address for app1.fabrikam.com. For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.
Question 63
Your company has five offices. Each office has a firewall device and a local internet connection. The offices connect to a third-party SD-WAN. You have an Azure subscription that contains a virtual network named Vnet1. Vnet1 contains a virtual network gateway named Gateway1. Each office connects to Gateway1 by using a Site-to-Site VPN connection. You need to replace the third-party SD-WAN with an Azure Virtual WAN. What should you include in the solution?
Question 64
You are planning the IP addressing for the subnets in Azure virtual networks. Which type of resource requires IP addresses in the subnets?
Question 65
You have an Azure subscription mat contains tour virtual networks named VNet1, VNet2, VNet3, and VNet4. You plan to deploy a hub and spoke topology by using virtual network peering. You need to configure VNet1 as the hub network. The solution must meet the following requirements: • Support transitive routing between spokes. • Maximize network throughput. What should you include in the solution?
Question 66

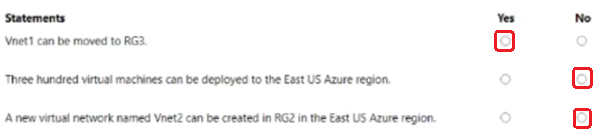

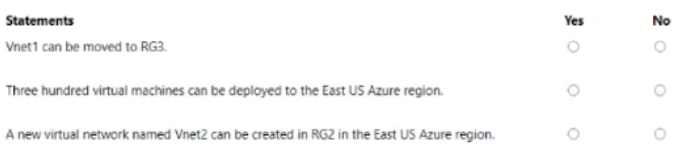

HOTSPOT - You have an Azure subscription that contains the resource groups shown in the following table. You have the virtual networks shown in the following table. You have the subnets shown in the following table. For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.
Question 67
SIMULATION -

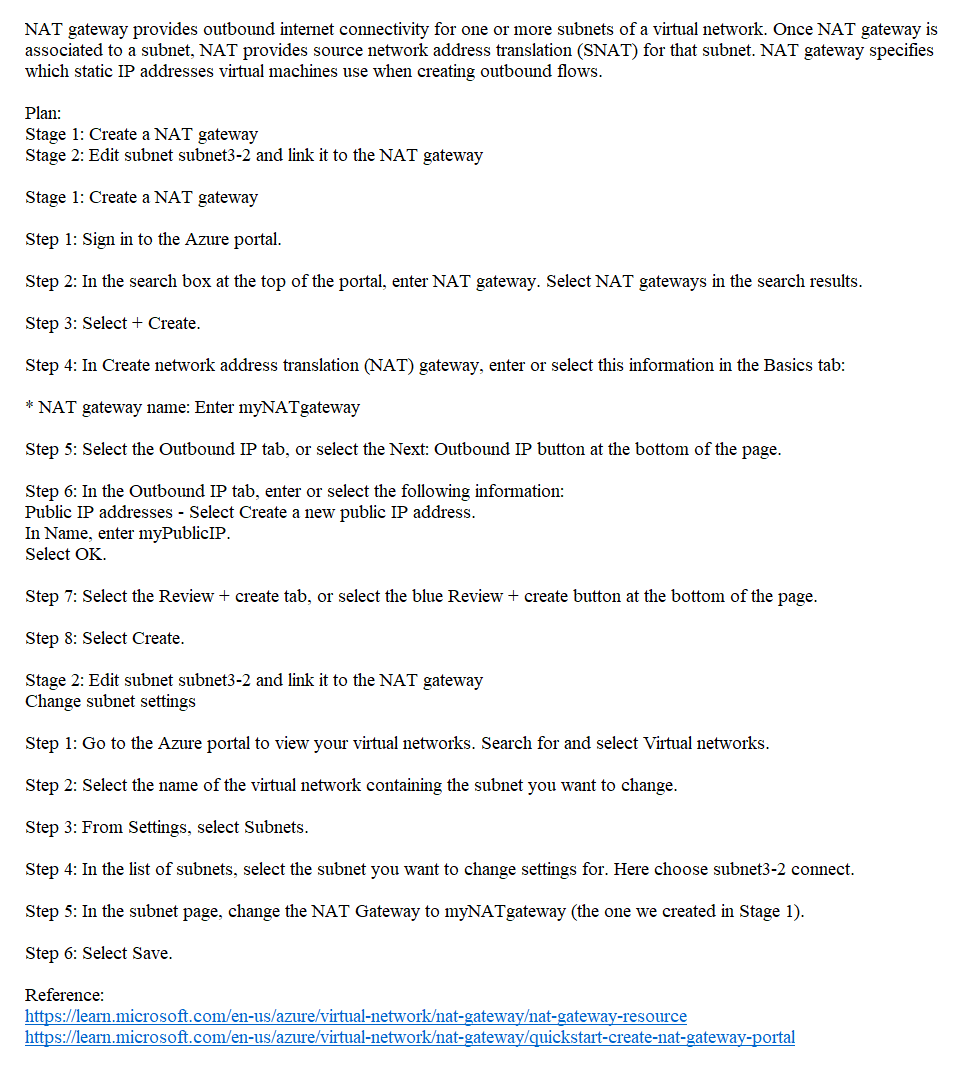

Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You need to ensure that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address. The solution must minimize administrative effort when adding hosts to the subnet. To complete this task, sign in to the Azure portal.
Question 68
SIMULATION -

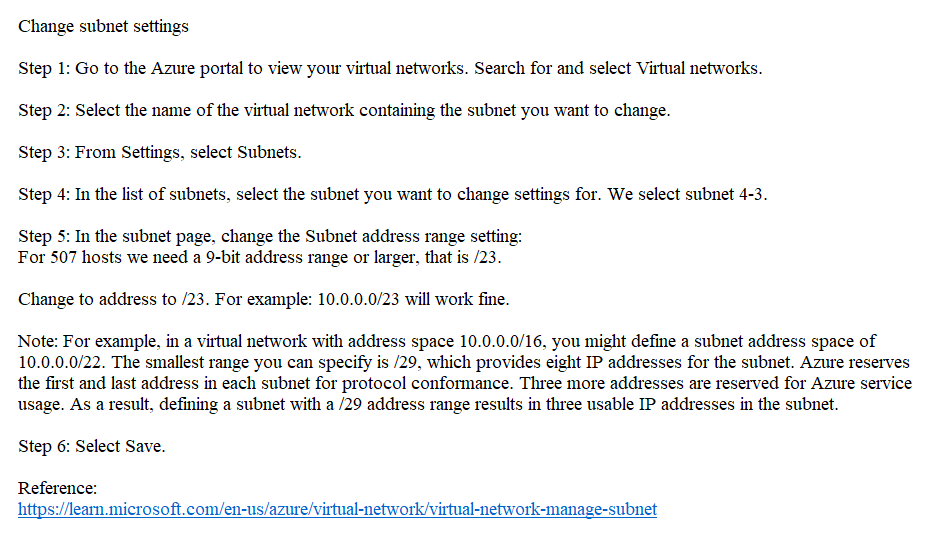

Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You need to ensure that subnet 4-3 can accommodate 507 hosts. To complete this task, sign in to the Azure portal.
Question 69

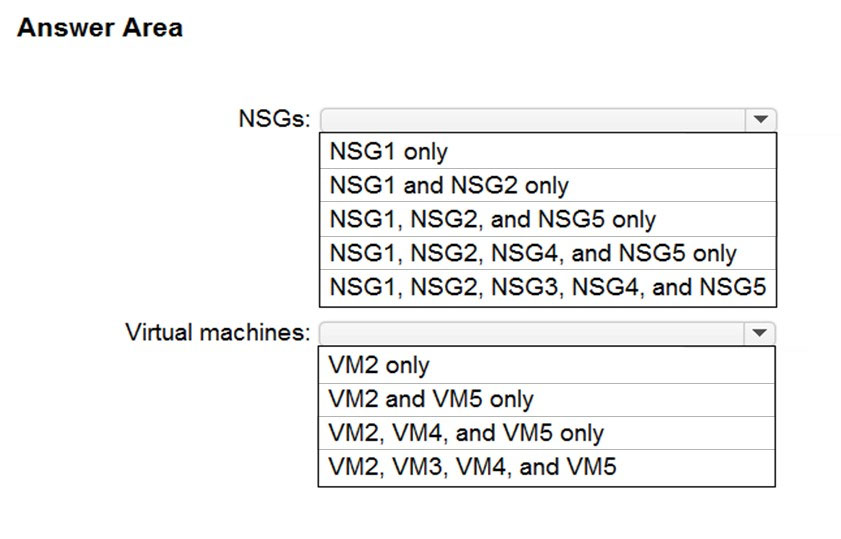

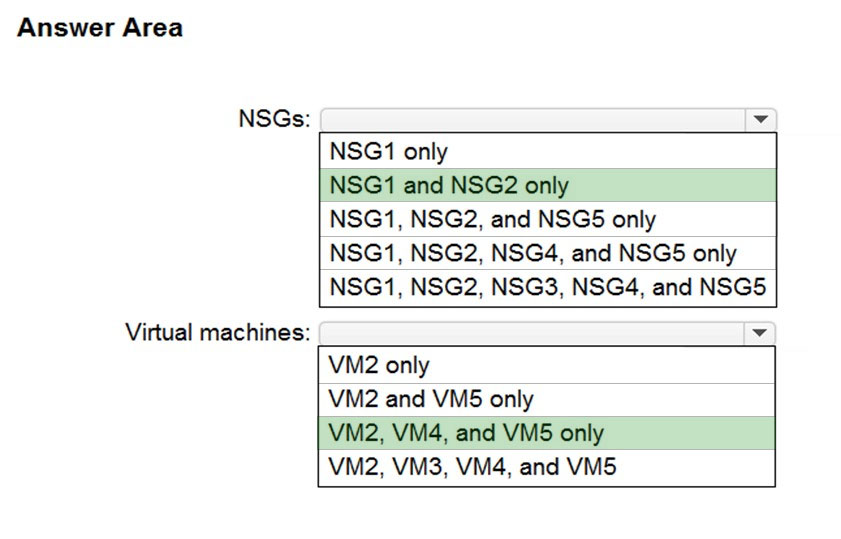

HOTSPOT - In which NSGs can you use ASG1 and to which virtual machine network interfaces can you associate ASG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point. Hot Area:
Question 70
SIMULATION -
Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You need to ensure that virtual machines on VNET1 and VNET2 are included automatically in a DNS zone named contosoazure. The solution must ensure that the virtual machines on VNET1 and VNET2 can resolve the names of the virtual machines on either virtual network. To complete this task, sign in to the Azure portal.
