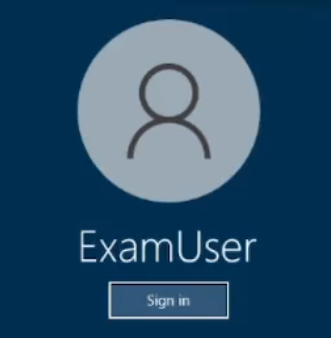

Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You are preparing to connect your on-premises network to VNET4 by using a Site-to-Site VPN. The on-premises endpoint of the VPN will be created on a firewall named Firewall1. The on-premises network has the following configuration: • internal address range: 10.10.0.0/16 • Firewall1 internal IP address: 10.10.1.1 • Firewall public IP address: 131.107.50.60 BGP is NOT used. You need to create the object that will provide the IP addressing configuration of the on-premises network to the Site-to-Site VPN. You do NOT need to create a virtual network gateway to complete this task. To complete this task, sign in to the Azure portal.
Question 22
SIMULATION -
Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You need to ensure that hosts on VNET2 can access hosts on both VNET1 and VNET3. The solution must prevent hosts on VNET1 and VNET3 from communicating through VNET2. To complete this task, sign in to the Azure portal.
Question 23

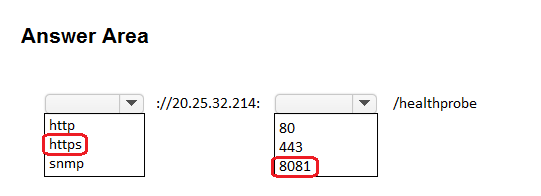

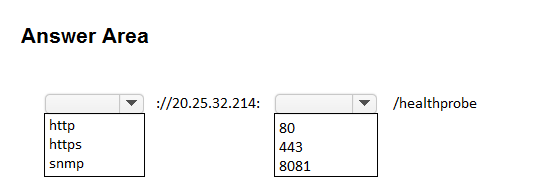

HOTSPOT - You have an Azure subscription that contains a virtual network gateway named VNetGwy1. VNetGwy1 has a public IP address of 20.25.32.214. You need to query the health probe of VNetGwy1. How should you complete the URI? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Question 24

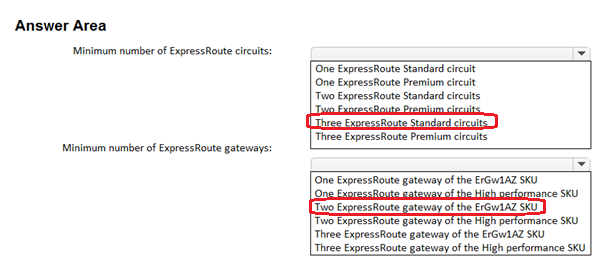

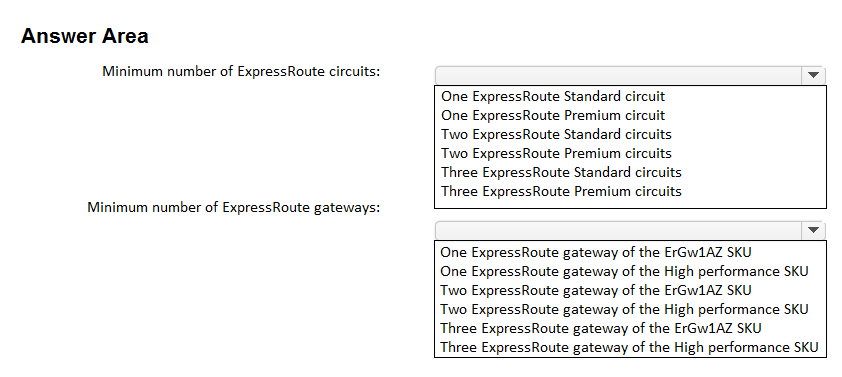

HOTSPOT - You have an on-premises datacenter. You have an Azure subscription that contains 10 virtual machines and a virtual network named VNet1 in the East US Azure region. The virtual machines are connected to VNet1 and replicate across three availability zones. You need to connect the datacenter to VNet1 by using ExpressRoute. The solution must meet the following requirements: • Maintain connectivity to the virtual machines if two availability zones fail. • Support 1000-Mbps connections. • Minimize costs. What should you include in the solution? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Question 25

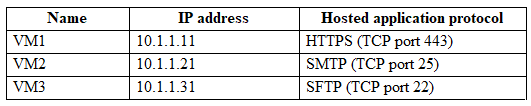

You have an Azure subscription that contains a virtual network named VNet1 and the virtual machines shown in the following table. All the virtual machines are connected to Vnet1. You need to ensure that the applications hosted on the virtual machines can be accessed from the internet. The solution must ensure that the virtual machines share a single public IP address. What should you use?
Question 26

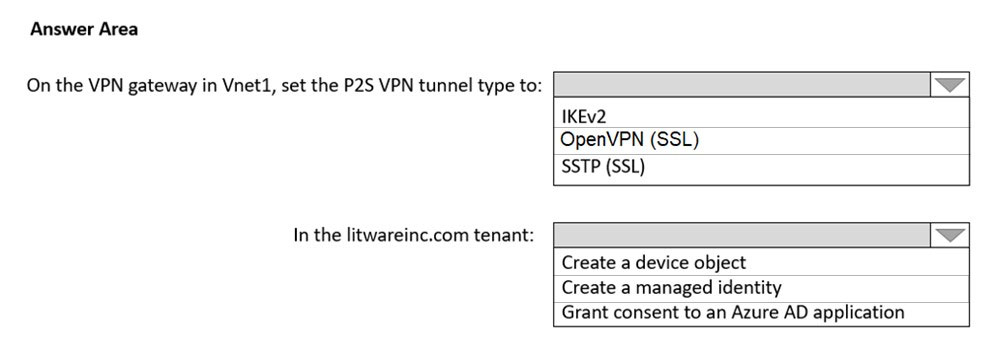

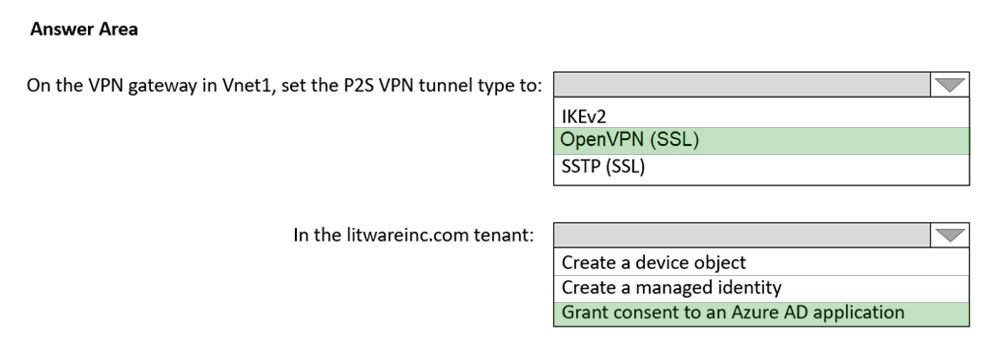

HOTSPOT - You need to implement a P2S VPN for the users in the branch office. The solution must meet the hybrid networking requirements. What should you do? To answer, select the appropriate options in the answer area. Hot Area:

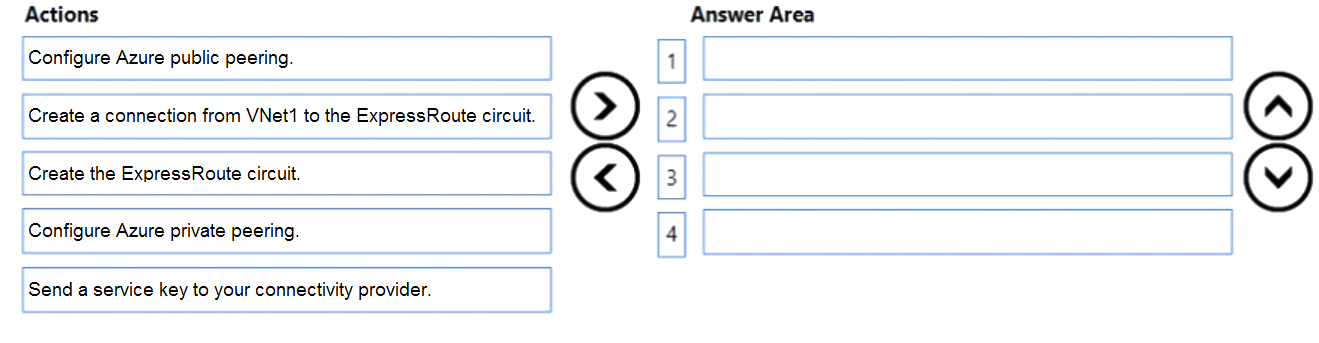

DRAG DROP - You have an on-premises network. You have an Azure subscription that contains a virtual network named VNet1. VNet1 contains an ExpressRoute gateway. You need to connect VNet1 to the on-premises network by using an ExpressRoute circuit. Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Question 28
You have three on-premises networks. You have an Azure subscription that contains a Basic Azure virtual WAN. The virtual WAN contains a single virtual hub and a virtual network gateway that is limited to a throughput of 1 Gbps. The on-premises networks connect to the virtual WAN by using Site-to-Site (S2S) VPN connections. You need to increase the throughput of the virtual WAN to 3 Gbps. The solution must minimize administrative effort. What should you do?
Question 29
You have 10 on-premises networks that are connected by using a 3rd party Software Defined Wide Area Network (SD-WAN) solution. You have an Azure subscription that contains five virtual networks. You plan to connect the Azure virtual networks and the on-premises networks by using an Azure Virtual WAN with a single virtual WAN hub. You need to ensure that the Azure Virtual WAN can act as a node in the 3rd party SD-WAN solution. What should you include in the solution?
Question 30

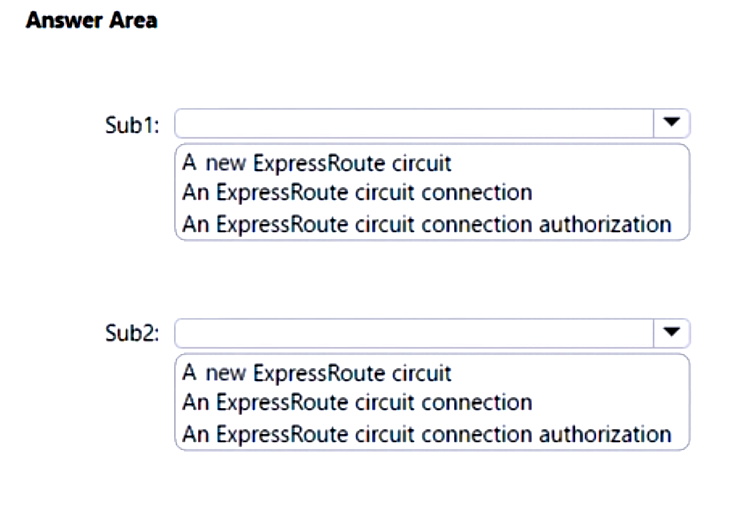

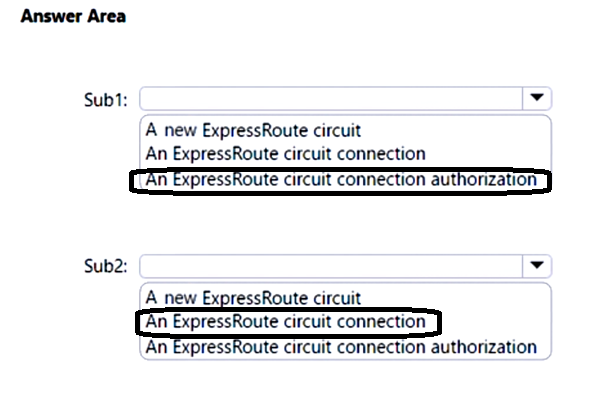

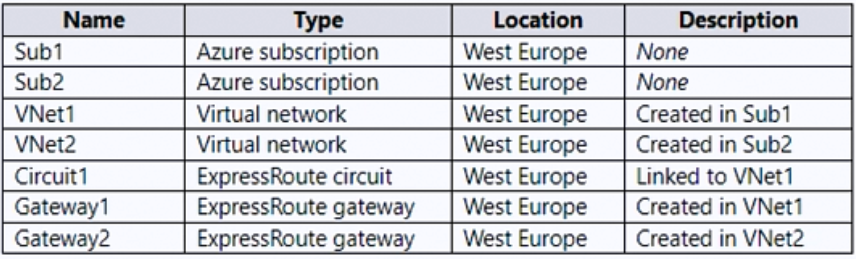

HOTSPOT - You have the Azure resources shown in the following table. You need to link VNet2 to Circuit1. What should you create in each subscription? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
