You have an Azure subscription that contains the following resources: • A virtual network named Vnet1 • Two subnets named subnet1 and AzureFirewallSubnet • A public Azure Firewall named FW1 • A route table named RT1 that is associated to Subnet1 • A rule routing of 0.0.0.0/0 to FW1 in RT1 After deploying 10 servers that run Windows Server to Subnet1, you discover that none of the virtual machines were activated. You need to ensure that the virtual machines can be activated. What should you do?
Question 132

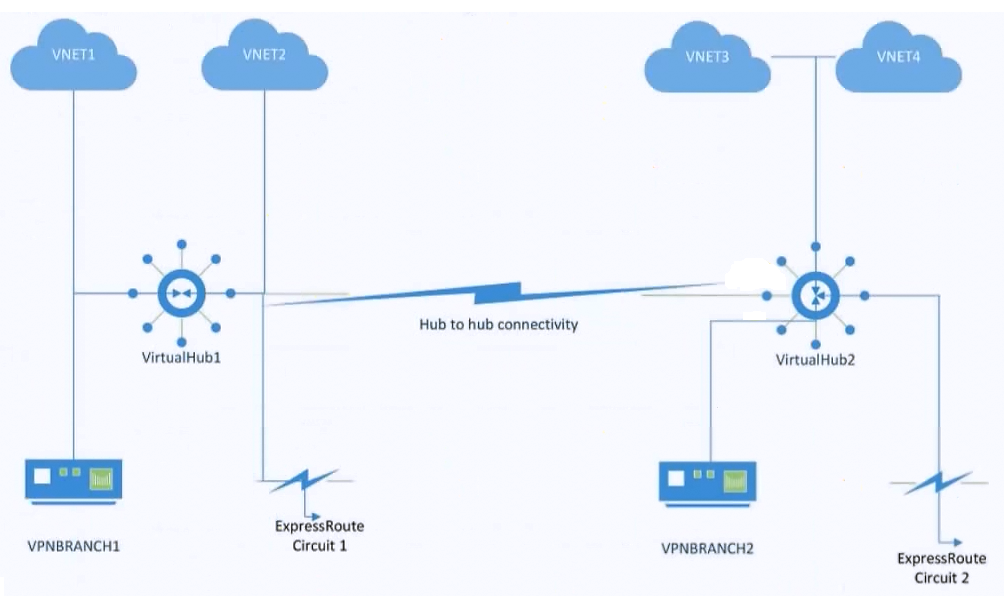

You have an Azure subscription. You plan to implement Azure Virtual WAN as shown in the following exhibit. What is the minimum number of route tables that you should create?
Question 133

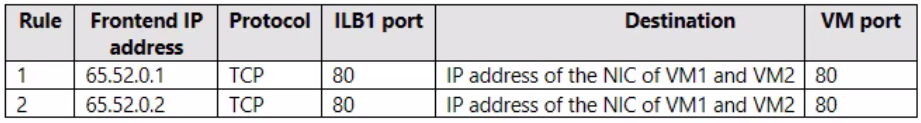

You have an internal Basic Azure Load Balancer named LB1 that has two frontend IP addresses. The backend pool of LB1 contains two Azure virtual machines named VM1 and VM2. You need to configure the rules on LB1 as shown in the following table. What should you do for each rule?
Question 134
Your company has 40 branch offices that are linked by using a Software-Defined Wide Area Network (SD-WAN). The SD-WAN uses BGP. You have an Azure subscription that contains 20 virtual networks configured as a hub and spoke topology. The topology contains a hub virtual network named Vnet1. The virtual networks connect to the SD-WAN by using a network virtual appliance (NVA) in Vnet1. You need to ensure that BGP route advertisements will propagate between the virtual networks and the SD-WAN. The solution must minimize administrative effort. What should you implement?
Question 135

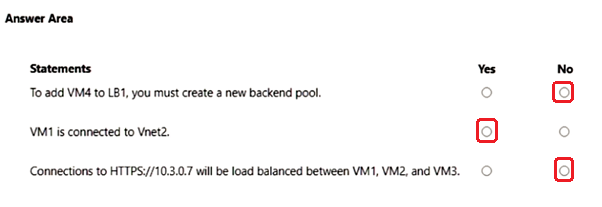

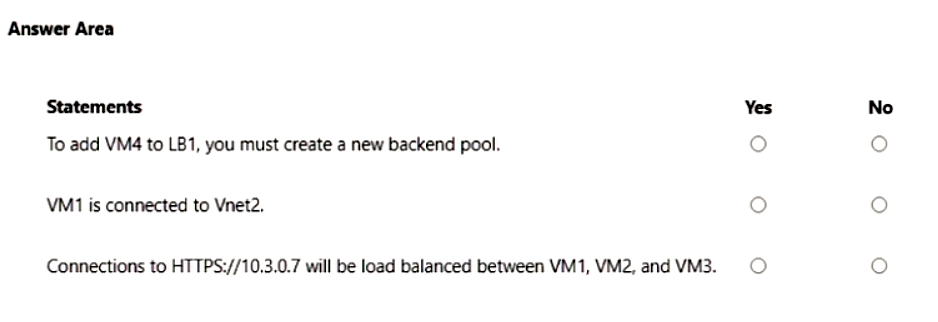

HOTSPOT - You have an Azure load balancer that has the following configurations: • Name: LB1 • Location: East US 2 • SKU: Standard • Private IP address: 10.3.0.7 • Load balancing rule: rule1 (Tcp/80) • Health probe: probe1 (Http:80) • NAT rules: 0 inbound The backend pool of LB1 has the following configurations: • Name: backend1 • Virtual network: Vnet2 • Backend pool configuration: NIC • IP version: IPv4 • Virtual machines: VM1, VM2, VM3 You have an Azure virtual machine named VM4 that has the following network configurations: • Network interface: vm4981 • Virtual network/subnet: Vnet3/Subnet3 • NIC private IP address: 10.4.0.4 • Accelerated networking: Enabled For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.
Question 136

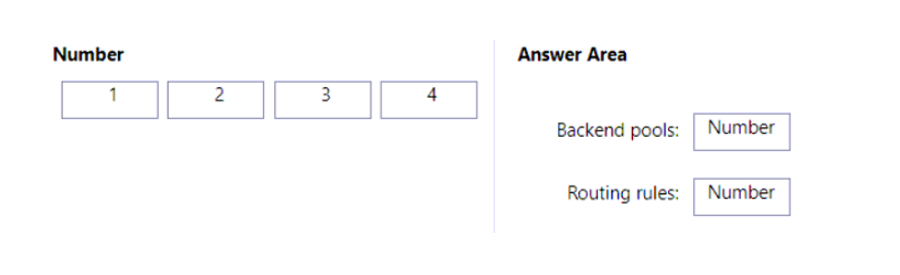

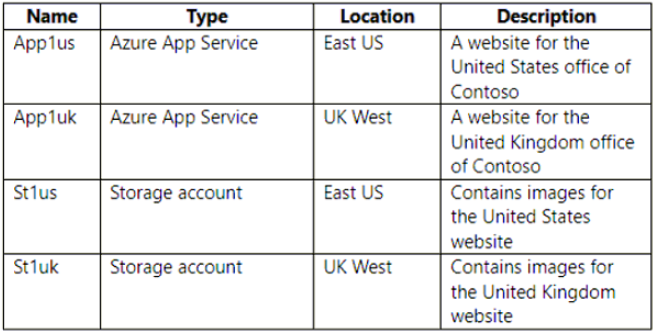

DRAG DROP - Your company, named Contoso, Ltd., has an Azure subscription that contains the resources shown in the following table. You plan to deploy Azure Front Door. The solution must meet the following requirements: • Requests to a URL of https://contoso.azurefd.net/uk must be routed to App1uk. • Requests to a URL of https://contoso.azurefd.net/us must be routed to App1us. • Requests to a URL of https://contoso.azurefd.net/images must be routed to the storage account closest to the user. What is the minimum number of backend pools and routing rules you should create? To answer, drag the appropriate number to the correct components. Each number may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.
Question 137

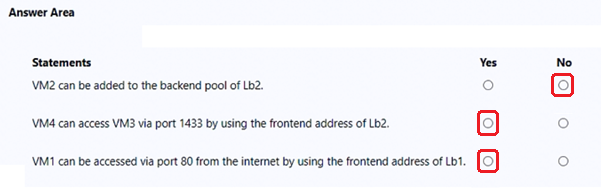

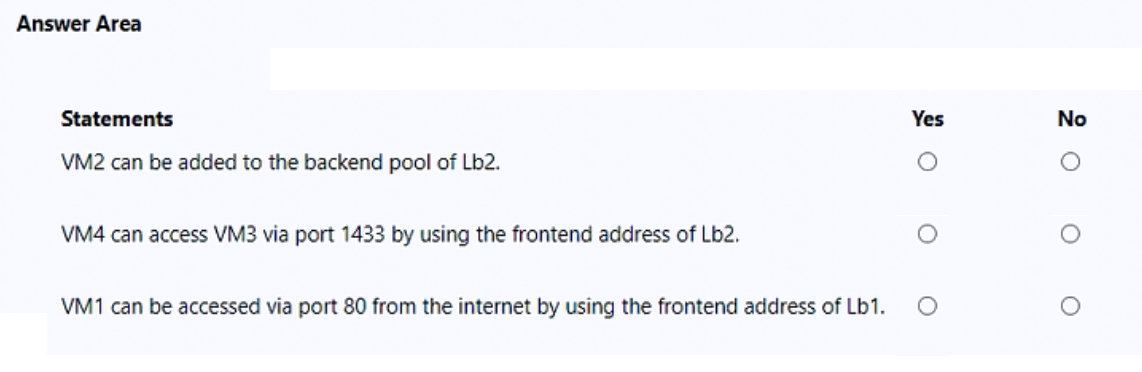

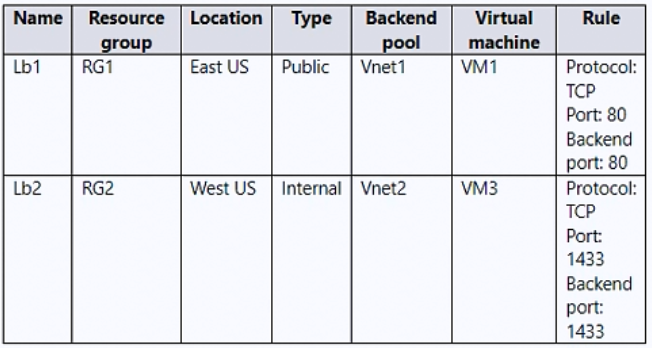

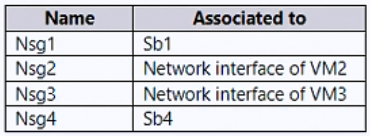

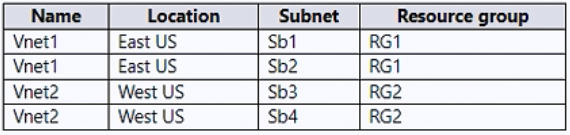

HOTSPOT - You have an Azure subscription that contains the resource groups shown in the following table. You have the virtual networks shown in the following table. Vnet1 contains two virtual machines named VM1 and VM2. Vnet2 contains two virtual machines named VM3 and VM4. You have the network security groups (NSGs) shown in the following table that include only default rules. You have the Azure load balancers shown in the following table. For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.
Question 138
You have an Azure subscription that contains the resources shown in the following table. Gateway1 provides access to App1 by using a URL of https://app1.contoso.com. You create a new web app named App2. You need to configure Gateway1 to enable access to App2 by using a URL of https://app2.contoso.com. The solution must minimize administrative effort. What should you configure on Gateway1?
Question 139
SIMULATION -

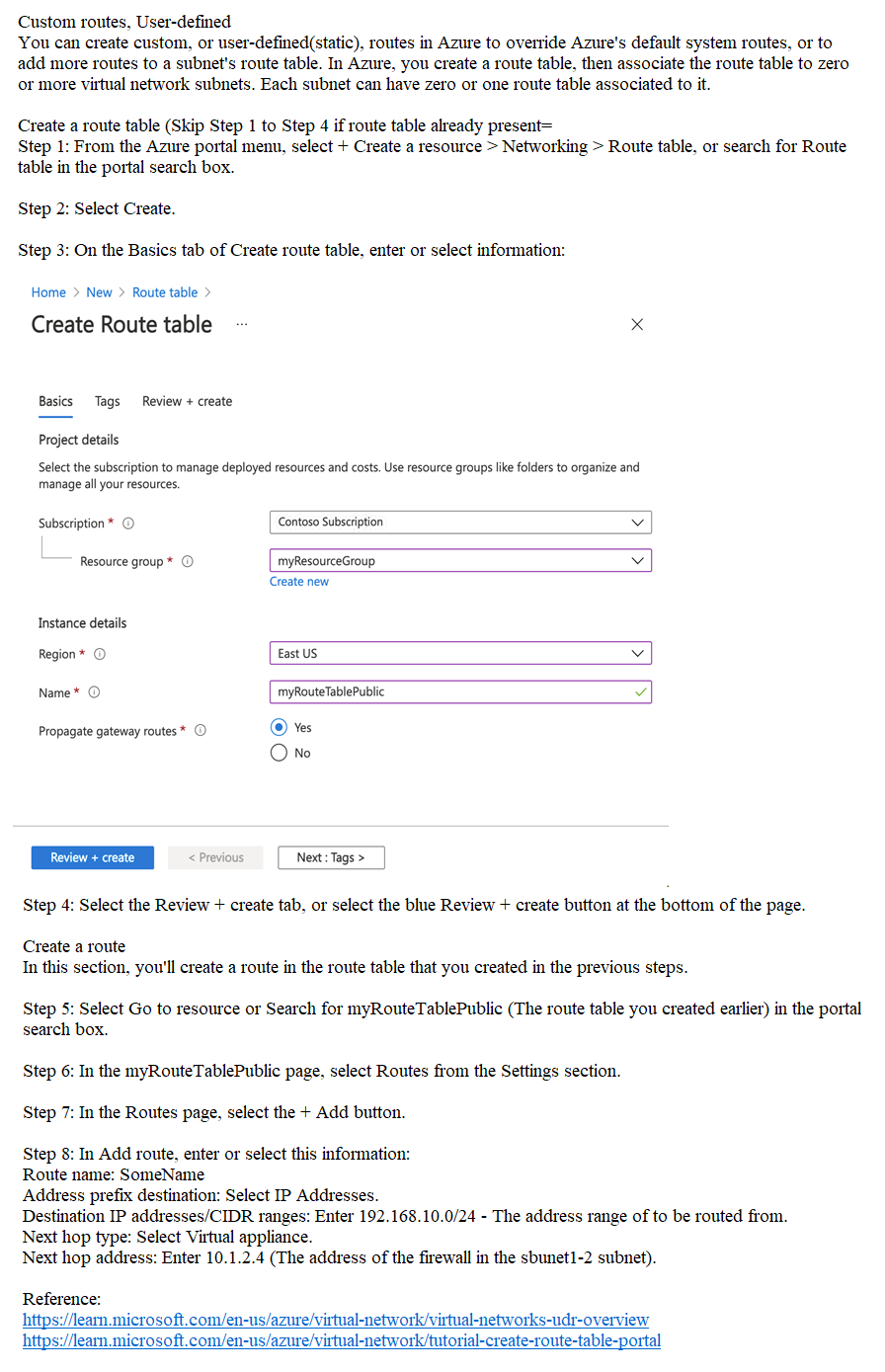

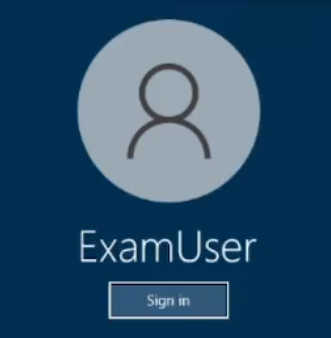

Username and password - Use the following login credentials as needed: To enter your username, place your cursor in the Sign in box and click on the username below. To enter your password, place your cursor in the Enter password box and click on the password below. Azure Username: [email protected] Azure Password: xxxxxxxxxx - If the Azure portal does not load successfully in the browser, press CTRL-K to reload the portal in a new browser tab. The following information is for technical support purposes only: Lab Instance: 12345678 - You plan to deploy a firewall to subnet1-2. The firewall will have an IP address of 10.1.2.4. You need to ensure that traffic from subnet1-1 to the IP address range of 192.168.10.0/24 is routed through the firewall that will be deployed to subnet 1-2. The solution must be achieved without using dynamic routing protocol. To complete this task, sign in to the Azure portal.
Question 140
You have two Azure virtual networks in the East US Azure region as shown in the following table. The virtual networks are peered to one another. Each virtual network contains four subnets. You plan to deploy a virtual machine named VM1 that will inspect and route traffic between all the subnets on both the virtual networks. What is the minimum number of IP addresses that you must assign to VM1?
