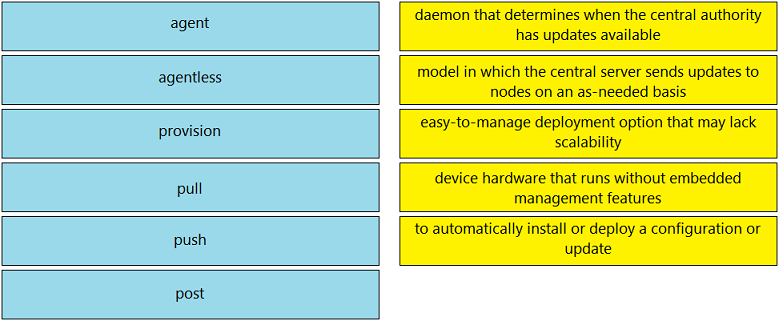

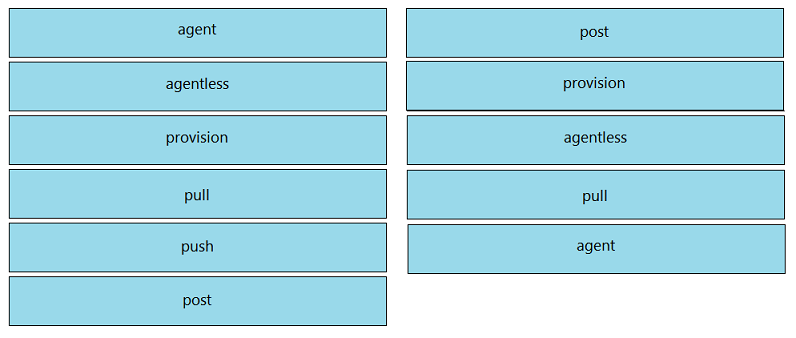

DRAG DROP -Drag and drop the configuration management terms from the left onto the descriptions on the right. Not all terms are used.

Which interface type enables an application running on a client to send data over an IP network to a server?

A. northbound interface B. application programming interface C. southbound interface D. Representational State Transfer application programming interface

What does traffic shaping do?

A. It queues excess traffic B. It sets QoS attributes within a packet C. It organizes traffic into classes D. It modifies the QoS attributes of a packet

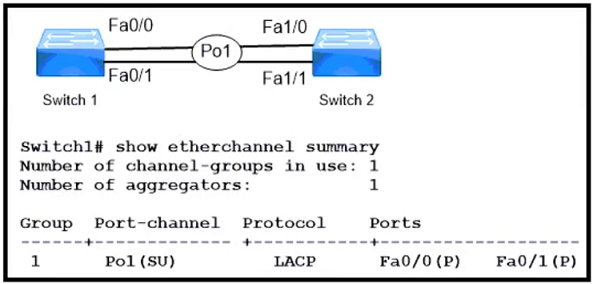

Refer to the exhibit. A Cisco engineer is asked to update the configuration on switch 1 so that the EtherChannel stays up when one of the links fails.
Which configuration meets this requirement?

A. Switch1(config) # interface Fa0/0
Switch1(config-if) # lacp port-priority 100
Switch1(config) # interface Fa0/1
Switch1(config-if) # lacp port-priority 200 B. Switch1(config) # interface port-channel 1
Switch1(config-if) # port-channel min-links 1 C. Switch1(config) # interface Fa0/0
Switch1(config-if) # lacp port-priority 200
Switch1(config) # interface Fa0/1
Switch1(config-if) # lacp port-priority 100 D. Switch1(config) # interface port-channel 1
Switch1(config-if) # lacp max-bundle 1

Which two protocols are supported on service-port interfaces? (Choose two.)

A. Telnet B. SCP C. TACACS+ D. SSH E. RADIUS

Two switches have been implemented and all interfaces are at the default configuration level. A trunk link must be implemented between two switches with these requirements:

* using an industry-standard trunking protocol
* permitting VLANs 1-10 and denying other VLANs

How must the interconnecting ports be configured?

A. switchport mode dynamic
channel-protocol lacp
switchport trunk allowed vlans 1-10 B. switchport mode trunk
switchport trunk allowed vlans 1-10
switchport trunk native vlan 11 C. switchport mode trunk
switchport trunk encapsulation dot1q
switchport trunk allowed vlans 1-10 D. switchport mode dynamic desirable
channel-group 1 mode desirable
switchport trunk encapsulation isl
switchport trunk allowed vlan except 11-4094

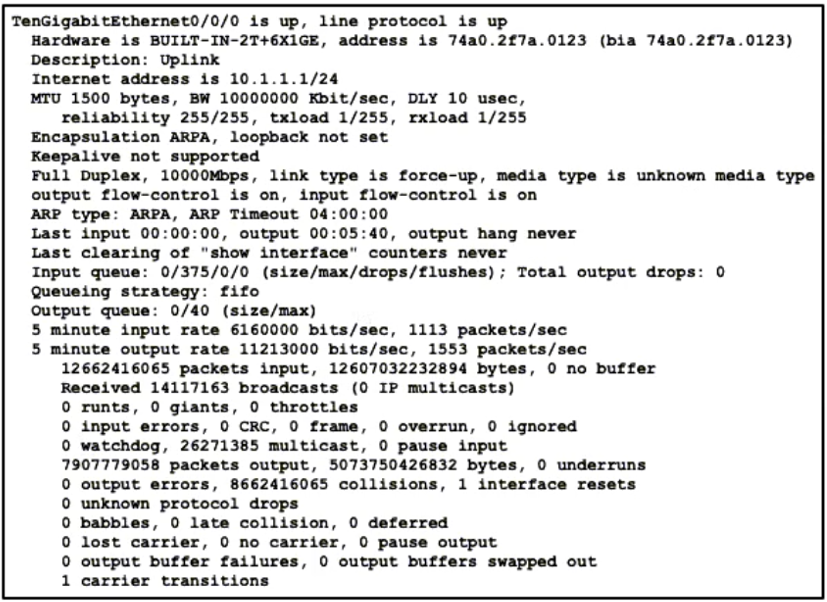

Refer to the exhibit. Traffic that is flowing over interface TenGigabitEthemet0/0/0 experiences slow transfer speeds. What is the cause of this issue?

A. speed conflict B. queuing drops C. duplex incompatibility D. heavy traffic congestion

Which two host addresses are reserved for private use within an enterprise network? (Choose two.)

A. 10.172.76.200 B. 12.17.1.20 C. 172.15.2.250 D. 172.31.255.100 E. 192.169.32.10

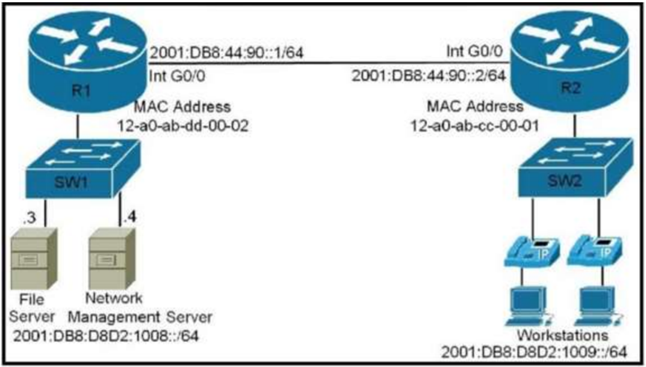

Refer to the exhibit. The iPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format.
Which address must be used?

A. ipv6 address 2001:DB8:D8D2:1009:10A0:ABFF:FECC:1 eui-64 B. ipv6 address 2001:DB8:D8D2:1009:1230:ABFF:FECC:1 eui-64 C. ipv6 address 2001:DB8:D8D2:1009:4347:31FF:FF47:0 eui-64 D. ipv6 address 2001:DB8:D8D2:1009:12A0:AB34:FFCC:1 eui-64

What are two reasons to configure PortFast on a switch port attached to an end host? (Choose two.)

A. to block another switch or host from communicating through the port B. to enable the port to enter the forwarding state immediately when the host boots up C. to prevent the port from participating in Spanning Tree Protocol operations D. to protect the operation of the port from topology change processes E. to limit the number of MAC addresses learned on the port to 1
