What is the route-tag setting in an SD-WAN rule used for?

A. To indicate the routes for health check probes. B. To indicate the destination of a rule based on learned BGP prefixes. C. To indicate the routes that can be used for routing SD-WAN traffic. D. To indicate the members that can be used to route SD-WAN traffic.

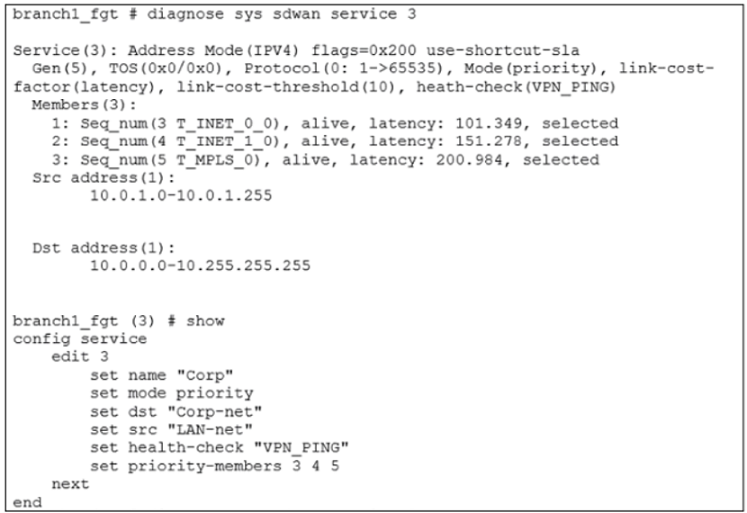

Refer to the exhibit.
The exhibit shows the SD-WAN rule status and configuration.
Based on the exhibit, which change in the measured latency will make T_MPLS_0 the new preferred member?

A. When T_INET_0_0 and T_MPLS_0 have the same latency. B. When T_MPLS_0 has a latency of 100 ms. C. When T_INET_0_0 has a latency of 250 ms. D. When T_N1PLS_0 has a latency of 80 ms.

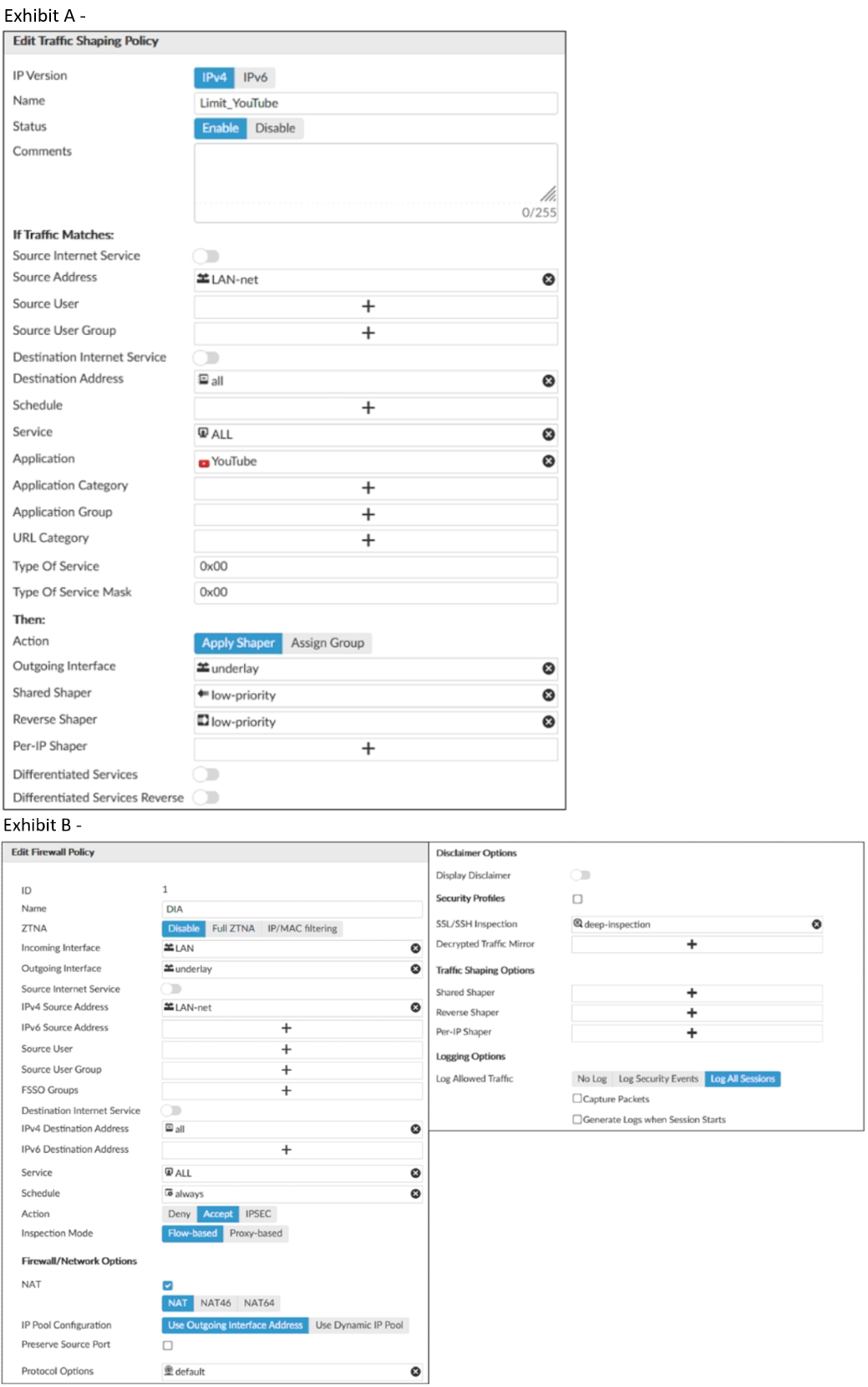

Refer to the exhibits.
Exhibit A shows the traffic shaping policy and exhibit B shows the firewall policy.
The administrator wants FortiGate to limit the bandwidth used by YouTube. When testing, the administrator determines that FortiGate does not apply traffic shaping on YouTube traffic.
Based on the policies shown in the exhibits, what configuration change must be made so FortiGate performs traffic shaping on YouTube traffic?

A. Destination internet service must be enabled on the traffic shaping policy. B. Application control must be enabled on the firewall policy. C. Web filtering must be enabled on the firewall policy. D. Individual SD-WAN members must be selected as the outgoing interface on the traffic shaping policy.

Which are three key routing principles in SD-WAN? (Choose three.)

A. FortiGate performs route lookups for new sessions only. B. Regular policy routes have precedence over SD-WAN rules. C. SD-WAN rules have precedence over ISDB routes. D. By default, SD-WAN members are skipped if they do not have a valid route to the destination. E. By default, SD-WAN rules are skipped if the best route to the destination is not an SD-WAN member.

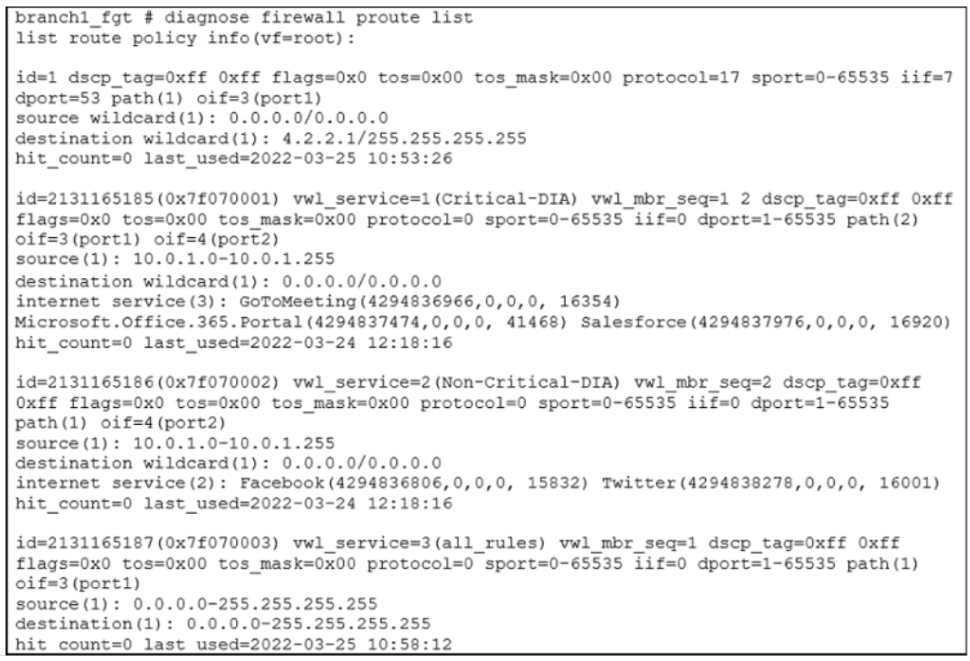

Refer to the exhibit.
Based on the output, which two conclusions are true? (Choose two.)

A. There is more than one SD-WAN rule configured. B. The SD-WAN rules take precedence over regular policy routes. C. The all_rules rule represents the implicit SD-WAN rule. D. Entry 1(id=1) is a regular policy route.

Which two statements about SLA targets and SD-WAN rules are true? (Choose two.)

A. When configuring an SD-WAN rule, you can select multiple SLA targets of the same performance SLA. B. SD-WAN rules use SLA targets to check if the preferred members meet the SLA requirements. C. SLA targets are used only by SD-WAN rules that are configured with Lowest Cost (SLA) or Maximize Bandwidth (SLA) as strategy. D. Member metrics are measured only if an SLA target is configured.

What does enabling the exchange-interface-ip setting enable FortiGate devices to exchange?

A. The gateway address of their IPsec interfaces B. The tunnel ID of their IPsec interfaces C. The IP address of their IPsec interfaces D. The name of their IPsec interfaces

Which diagnostic command can you use to show the configured SD-WAN zones and their assigned members?

A. diagnose sys sdwan zone B. diagnose sys sdwan service C. diagnose sys sdwan member D. diagnose sys sdwan interface

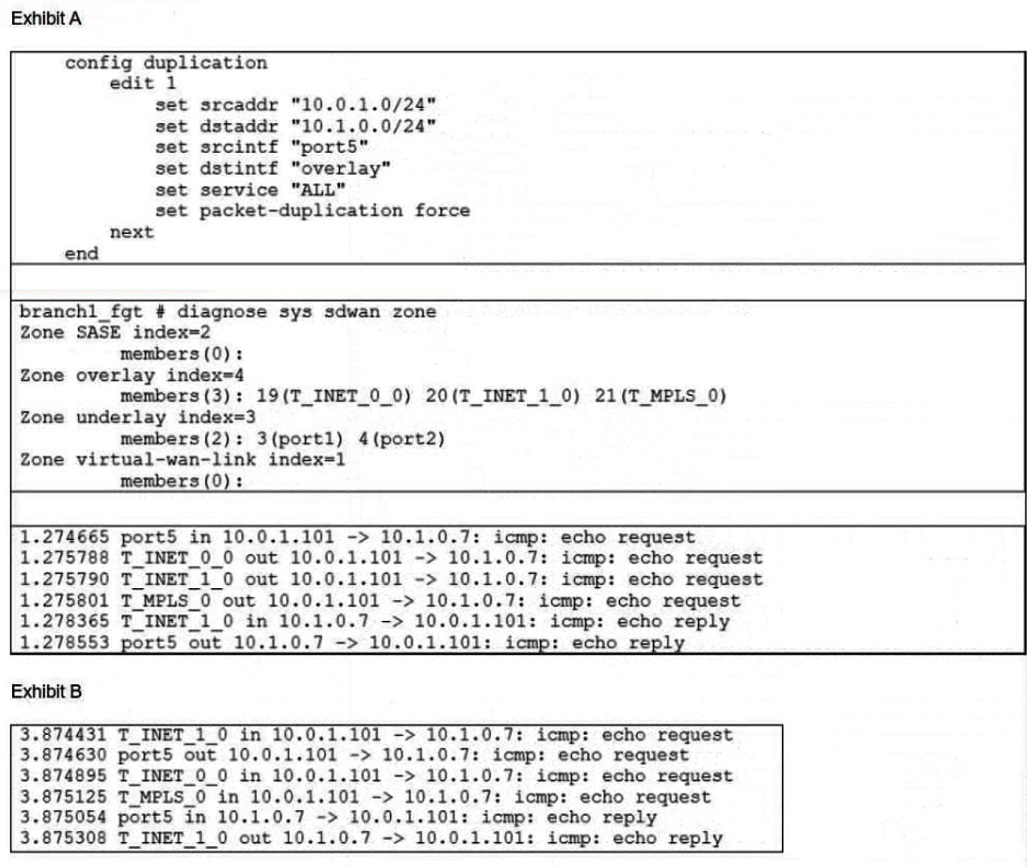

Refer to the exhibits.
Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver.
The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0.
Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)

A. On the receiver FortiGate, packet-de-duplication is enabled. B. The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way. C. The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to NPU. D. On the sender FortiGate, duplication-max-num is set to 3.

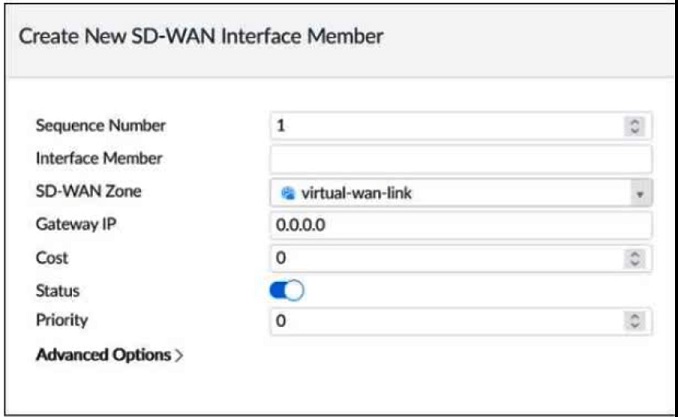

Refer to the exhibit.
Which two SD-WAN template member settings support the use of FortiManager meta fields? (Choose two.)

A. Cost B. Interface member C. Priority D. Gateway IP
